The Haawal Barrier is easy and quick to install, requiring no tools and minimal labor.
See how the Haawal barrier has been used to prevent damages during several flooding events.
The flood barrier is capable of adapting to any terrain, without special components or tools.

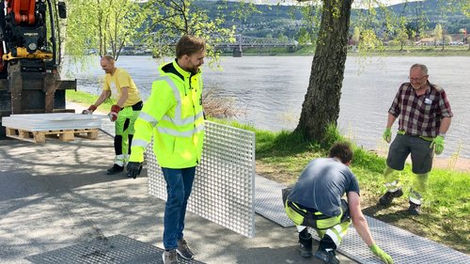

Quick setup and easy dismantling
Experience hassle-free setup and dismantling with our user-friendly system. With intuitive design and quick assembly, you'll have the Haawal barrier up and running in no time.
Two people can assemble 100 meters of Haawal flood protection in approximately one hour and dimsmatiling can be done even faster.
The Haawal Barrier
90cm
120cm
Compact, efficient and cost saving. Protection height is up to 90 cm.
Taller protection height and more flexibility in uncertain situations. Protection height is up to 120 cm.
A flexible barrier that adapts to any terrain
The combination of free-standing modules and the flexible membrane creates a highly adaptable system capable of sealing off uneven terrain. The modules can be angled to form curves and corners and positioned to bypass obstacles. The membrane extends up to two meters in front of the barrier, providing optimal sealing. As water pressure is applied, the membrane conforms to the surface, ensuring a secure seal.
Using floodwater for stabilization
The Haawal barrier features an L-shaped cross-section, comprising a wall and a base plate reinforced by a support wire. During a flood, the hydrostatic forces exert greater pressure on the base plate than the wall, resulting in a barrier with exceptional stability.
Simple system with many usecases.
The Haawal Flood Barrier can adapt to almost any situation, without the need for special components or tools. Setting up 90 degree turns is as simple as inserting the wall at a right angle onto the base. As each module is self stabilizing, smaller angles are easily achieved by setting up each module at an angle to each other.
Along rivers and coastlines
Around stand alone buildings.
Temporary dams
Pools for water storage
A durable and reusable system:
Haawal Panels
- 14 layered glass fiber reinforced composite structure
- Optimized cell-geometry
- Excellent strength to weight ratio
- UV and chemical resistant
- High impact resistance
- Stainless steel attachment point
- Reusable
Support Wires:
- Quick-fix attachment points
- No tools needed, only hands
- Stainless steel
- Corrosion free
- Reusable
Sealing Membrane
- Recyclable PE
- High tear resistance
- High flexibility
- UV resistant
- 25 meter rolls
- Adaptable to any length
Haawal Engineering AS
Org.-Nr.: 918 013 792
Sagveien 21 A, 0459 Oslo, Norway
Copyright © 2025. All Rights Reserved
Product is patented
Information
Haawal's Self-Stabilizing Flood Barrier revolutionizes flood protection with quick setup and easy dismantling, empowering communities to the challenges brought on by a changing climate.
Self-stabilising
Robust
Many usecases
Light and strong
Designed to last
Simple and efficient
